Ultrasonic welding has become a popular method for joining plastic parts, offering benefits in terms of speed, precision, and efficiency. However, other technologies such as heat staking, adhesive bonding, and mechanical fastening are also used in the industry, each with its own advantages and limitations.
In this article, we will compare plastic parts ultrasonic welders with other joining methods, evaluating their cost-efficiency, performance, and suitability for different plastic parts and applications. By understanding the strengths and weaknesses of each method, manufacturers can make more informed decisions about the most suitable technology for their specific needs.
1. Ultrasonic Welding for Plastic Parts
Ultrasonic plastic parts welding involves using high-frequency sound waves to generate heat through friction at the interface between two plastic parts. This process is highly effective for thermoplastic materials.
The ultrasonic vibrations cause the parts to melt at the joining area, creating a strong bond without the need for additional materials such as adhesives or fasteners. Plastic parts ultrasonic welders can join a wide range of thermoplastics, including polypropylene, polyethylene, polycarbonate, and ABS.

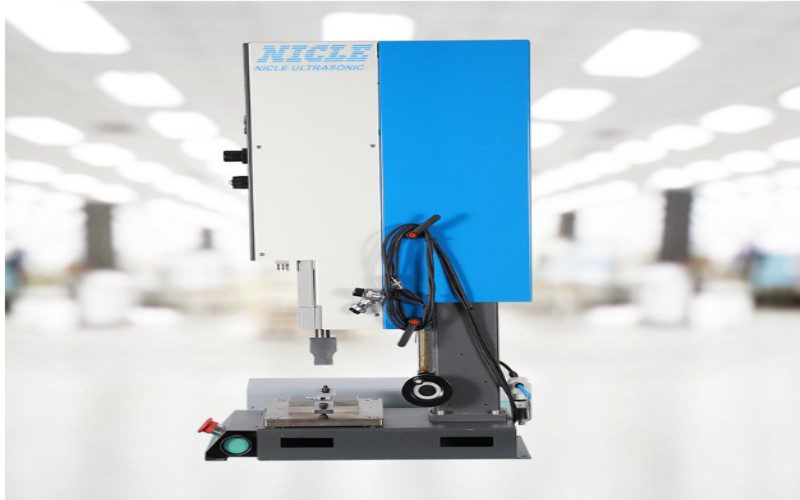

Ultrasonic plastic parts welding machines are designed to deliver precise control over key parameters such as pressure, time, and amplitude, ensuring consistent and reliable welds. The equipment can be automated, offering fast cycle times, making it suitable for high-volume production.
Advantages of Ultrasonic Welding
- Speed: Ultrasonic welding provides quick cycle times, usually taking just a few seconds to complete a weld.
- No Need for Consumables: Unlike adhesive bonding or heat staking, ultrasonic welding doesn’t require the use of additional materials such as adhesives, rivets, or screws, reducing operational costs.
- Precision: The process is highly accurate, allowing for the production of strong, consistent welds, even on complex or delicate plastic parts.
- Environmentally Friendly: Since no adhesives or solvents are involved, ultrasonic welding is a cleaner process with less environmental impact compared to methods that use chemicals or other consumables.
Cost Considerations for Ultrasonic Welding
- Initial Equipment Investment: The upfront cost for a plastic parts ultrasonic welder can be high, particularly for high-performance models with advanced features. However, the long-term benefits, including faster production rates and reduced material costs, can justify the initial investment.
- Energy Efficiency: Ultrasonic welding is energy-efficient, requiring less power compared to some other methods like heat staking.
- Maintenance: While ultrasonic welders are relatively low-maintenance, parts such as the transducer, horn, and booster may wear out over time and need periodic replacement, which adds to ongoing costs.
2. Heat Staking
Heat staking is a process that involves applying heat and pressure to a thermoplastic part to soften it and then inserting a metal or plastic fastener, creating a mechanical bond. The joining point is then cooled, solidifying the material and securing the parts together.
Advantages of Heat Staking
- Versatility: Heat staking can be used to attach a variety of components, such as inserts, pins, or other metal parts, to plastic components.
- Durability: The bond created by heat staking is strong and durable, especially when joining dissimilar materials, such as plastics to metals.
- Simple Process: Heat staking requires relatively low complexity and can be performed with simpler machines, making it an attractive option for some applications.
Cost Considerations for Heat Staking
- Initial Setup Costs: Heat staking machines are generally more affordable than ultrasonic welding machines. However, the added costs of inserts and fasteners, as well as the need for additional equipment (e.g., heated tooling), can add up.
- Time and Labor: Heat staking requires more time per part compared to ultrasonic welding, which increases labor costs in high-volume production environments. The process is also more operator-dependent, requiring additional training.
- Consumables: Unlike ultrasonic welding, which doesn’t require consumables, heat staking relies on additional materials such as inserts and fasteners, which add to overall costs over time.
3. Adhesive Bonding
Adhesive bonding involves applying a layer of adhesive to the joining surfaces of plastic parts. The adhesive is then allowed to cure, forming a strong bond between the materials. This method can be used for a wide range of materials, including thermoplastics, metals, and ceramics.
Advantages of Adhesive Bonding
- Flexibility: Adhesive bonding can be used to join a wide variety of materials, making it highly versatile. It can be applied to complex geometries and irregular surfaces that may not be easily welded.
- No Heat Involved: Adhesive bonding doesn’t require the use of heat, making it suitable for heat-sensitive materials.
- Suitable for Dissimilar Materials: Adhesive bonding is often used to join dissimilar materials that cannot be welded together with traditional methods.
Cost Considerations for Adhesive Bonding
- Material Costs: Adhesive bonding involves ongoing costs for adhesives, which can vary depending on the type and volume required. The cost of adhesives can increase with the need for stronger or more specialized products.
- Curing Time: Depending on the adhesive, curing time can be lengthy, which slows down production and increases the cycle time for each part.
- Quality Control: Adhesive bonding can be less consistent than ultrasonic welding. Variations in adhesive application, curing times, and environmental conditions can affect the quality and strength of the bond.
- Health and Safety: Many adhesives contain chemicals that can pose health or environmental risks, requiring additional safety measures and proper ventilation in the workspace.
4. Mechanical Fastening
Mechanical fastening involves using screws, rivets, or bolts to physically attach two plastic parts together. This method is often used when the bond needs to be disassembled or when there is a need to provide extra strength to the joint.
Advantages of Mechanical Fastening
- Strong, Removable Joints: Mechanical fastening offers a durable, strong bond that can be easily undone when required.
- Low Cost for Simple Joints: For basic applications, mechanical fastening is relatively inexpensive, especially for low volumes where the initial setup cost isn’t as significant.
Cost Considerations for Mechanical Fastening
- Labor-Intensive: Mechanical fastening typically requires more manual labor, increasing labor costs. Automated systems are available but require significant investment.
- Material Costs: Fasteners such as screws, bolts, and rivets add an ongoing cost, particularly for high-volume production.
- Time-Consuming: The process of inserting fasteners takes more time compared to ultrasonic welding, which impacts production speed and efficiency.
5. Cost Comparison and Performance Overview
When comparing plastic parts ultrasonic welders to other joining methods, several factors come into play, including upfront costs, ongoing operational expenses, cycle time, and the final performance of the welded parts. Below is a summary of the cost and performance of each method:
| Joining Method | Initial Setup Cost | Material Costs | Cycle Time | Labor Costs | Bond Strength | Maintenance Costs |
|---|---|---|---|---|---|---|
| Ultrasonic Welding | High | None | Very Fast (seconds) | Low | High | Low |
| Heat Staking | Medium | Inserts/Fasteners | Medium (seconds) | Medium | Medium to High | Medium |
| Adhesive Bonding | Low | High (Adhesives) | Slow (minutes) | Medium to High | Medium to High | Medium |
| Mechanical Fastening | Low to Medium | Fasteners | Medium to Slow | High | Medium to High | Medium to High |
Ultrasonic Welding: The Best Option for High-Speed, High-Volume Production
For manufacturers focused on ultrasonic plastic parts welding, plastic parts ultrasonic welders offer a compelling advantage when it comes to cost-efficiency and performance. While the initial investment is higher, the lack of consumables and the fast cycle times make ultrasonic welding a superior choice for high-volume production.
The ultrasonic plastic parts welding machine provides precision, speed, and reliability, ensuring consistent welds with minimal maintenance costs. If you’re looking for a machine to fit your production needs, a ultrasonic plastic welder with table is an excellent option for flexibility and space-saving while maintaining high productivity.
Heat Staking and Adhesive Bonding: Best for Specific Applications
Both heat staking and adhesive bonding offer viable alternatives to ultrasonic welding, especially in applications where additional components need to be attached (e.g., metal inserts) or when bonding dissimilar materials.
However, they typically involve higher material costs and longer cycle times. For low-volume or complex applications, these methods can offer benefits in terms of flexibility, though they tend to be more labor- and material-intensive.
Conclusion
Ultrasonic welding stands out as one of the most cost-efficient and high-performance methods for joining plastic parts in high-volume production environments. The speed, precision, and lack of consumables make it a superior option for many manufacturers.
While other methods like heat staking and adhesive bonding may be suitable for specific applications, they often involve higher material costs, longer cycle times, and more labor-intensive processes.
For businesses looking to optimize their production processes and reduce long-term costs, investing in plastic parts ultrasonic welders can provide substantial returns in terms of both efficiency and product quality.
